รายละเอียดสินค้า:
|
| ความสามารถในการสลับพอร์ต: | 20Gbps | ความสามารถในการส่งต่อ: | 15Mpps |
|---|---|---|---|
| ความจุการสลับกล่อง: | 336Gbps | ซีพียู: | 1 คอร์ 800MHz |
| แฟลช/SDRAM: | 256MB/512MB | เวลาแฝง (64 ไบต์/µs): | จีอี: < 5µs |
| เน้น: | H3C S5130S-10P-EI Gigabit switch,rack-mounted network switch,enhanced Gigabit access switch |
||

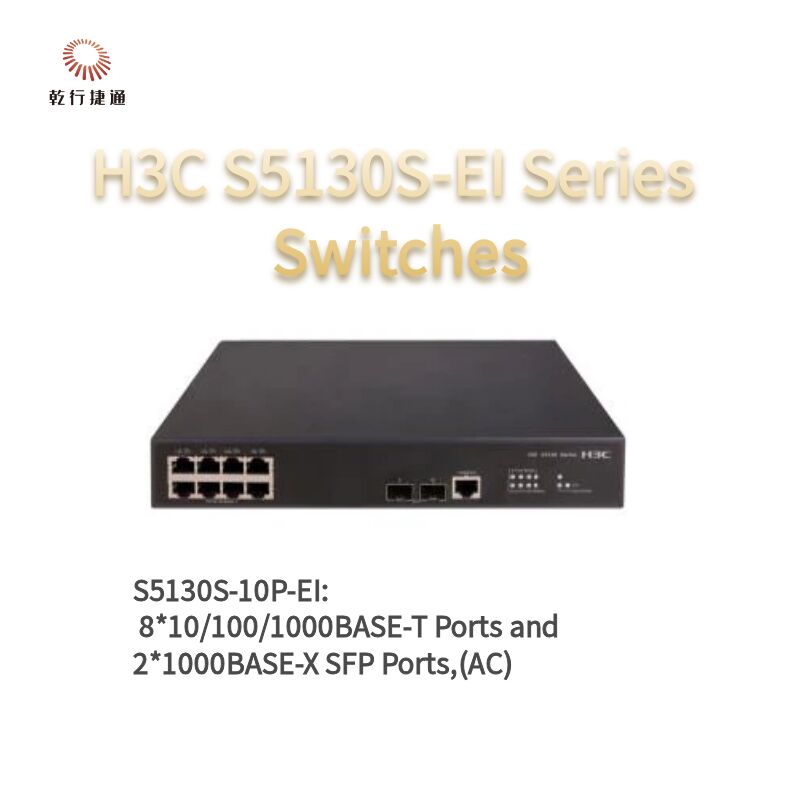

Product Overview
H3C S5130S-EI Series Switches – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offer enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high-density campus access.
| Hardware Specifications | ||||
| Features | S5130S-10P-EI | S5130S-20P-EI | S5130S-28P-EI | S5130S-52P-EI |
| Port Switching capacity | 20Gbps | 40Gbps | 56Gbps | 104Gbps |
| Forwarding capacity | 15Mpps | 30Mpps | 42Mpps | 78Mpps |
| Box Switching capacity | 336Gbps | |||
| CPU | 1 Core, 800MHz | |||
| Flash/SDRAM | 256MB/512MB | |||
| Latency (64byte/µs) | GE: < 5µs | |||
| Dimensions(W× D×H) | 266×161×43.6 mm | 330×230×43.6 mm | 440×160×43.6 mm | 440×230×43.6 mm |
| Weight | ≤1.5kg | ≤2kg | ≤2.5kg | ≤3.5kg |
| 10/100/1000 Base-T port | 8 | 16 | 24 | 48 |
| SFP Port | 2 | 4 | 4 | 4 |
| Maximum Stacking Bandwidth | 16Gbps | 16Gbps | 16Gbps | 16Gbps |
| Maximum stacking Num | 9 | 9 | 9 | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption | MIN: AC: 7W MAX: AC: 12W |
MIN: AC: 9W MAX: AC: 19W |
MIN: AC:9W MAX: AC:23W |
MIN: AC:18W MAX: AC:41W |
| Fan NUM | Fanless | Fanless | Fanless | 1 |
| MTBF(Year) | 168.61 | 136.24 | 150.86 | 115.68 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Operating Temperature |
-5℃ ~ 45℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
|||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Operating & Storage Relative Humidity | 5% RH to 95% RH, non-condensing | |||
