รายละเอียดสินค้า:
|
| โปรเซสเซอร์: | Intel® Xeon® 6300 series หนึ่งตัว หรือโปรเซสเซอร์ Intel® Xeon® E-2400 series หนึ่งตัวที่มีมากถึง 8 ค | หน่วยความจำ: | สล็อต DDR5 DIMM 4 ช่อง รองรับ UDIMM สูงสุด 128 GB ความเร็วสูงสุด 4400 MT/s รองรับ ECC DDR5 DIMM ที่ไ |
|---|---|---|---|
| ตัวควบคุมการจัดเก็บข้อมูล: | • ตัวควบคุมภายใน: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt | ช่องใส่ไดรฟ์: | • สายเคเบิล SAS/SATA HDD สูงสุด 2 x 3.5 นิ้ว สูงสุด 32 TB • SAS/SATA HDD/SSD แบบปลั๊กร้อนสูงสุด 6 x |
| แหล่งจ่ายไฟ: | • 450 W แพลทินัม 100 — 240 VAC ไม่ซ้ำซ้อน • 700 W ไทเทเนียม 200 — 240 VAC หรือ 240 VDC ไม่ซ้ำซ้อน | ตัวเลือกการทำความเย็น: | ระบายความร้อนด้วยอากาศ |
| เน้น: | PowerEdge R260 rack server,17-inch rack storage server,SMB near-edge server |
||

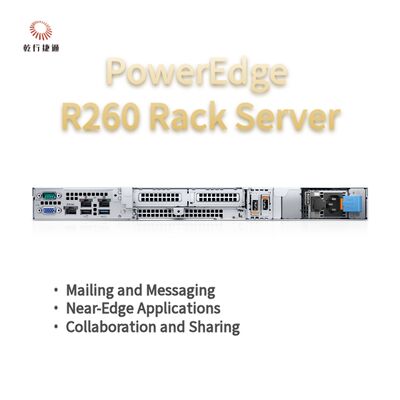

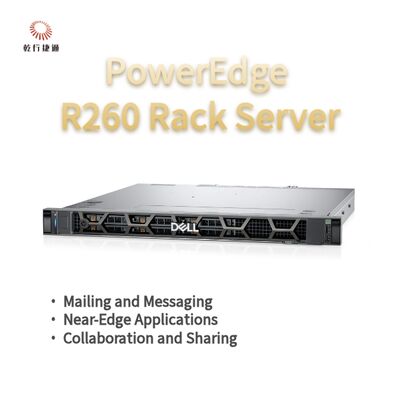

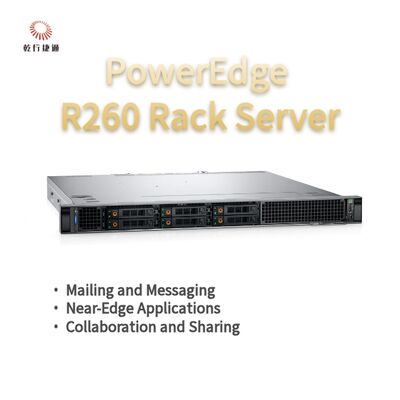

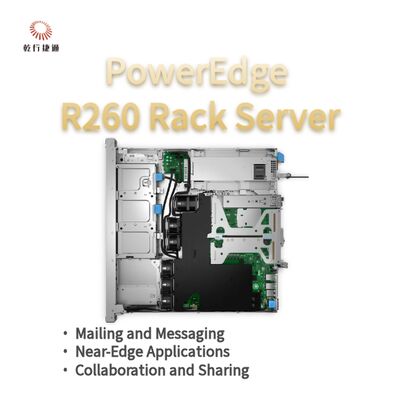

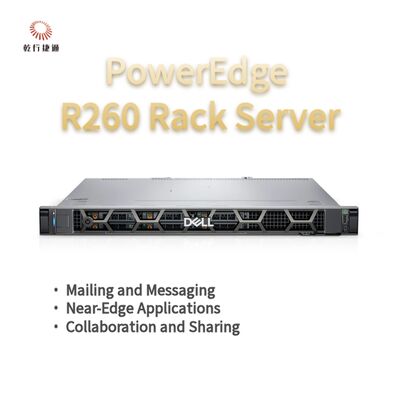

PowerEdge R260
Deliver powerful compute with a single processor server
The R260 is a newly designed short-depth 1-socket rack server tailored for SMB and Near-Edge customers, offering the power and flexibility to keep them at the forefront of technology.
More Flexibility and Protection for Near-Edge Deployment
For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.
Affordable Entry Rack Server with Enterprise-level Features and Capabilities
Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable hardware, latest generation processors and memory, advanced boot options and secure IT infrastructure. In addition,the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies.
Services
Rest easier with Dell Technologies Services. Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to
ProDeploy and ProSupport suites, Data Migration and more – available across 170 countries and backed by our 60K+ employees and partners.
| Feature | Technical Specifications | |
| Processor | One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or | |
| One Intel® Pentium® G7400/G7400T processor with 2 cores | ||
| Memory | • 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s | |
| • Supports unregistered ECC DDR5 DIMMs only | ||
| Storage controllers | • Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt | |
| • Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) | ||
| HWRAID 2 x M.2 SSDs | ||
| • External HBAs (non-RAID): HBA355e Adpt | ||
| • Software Controller: S160 | ||
| Drive Bays | Front bays: | |
| • Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB | ||
| • Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB | ||
| Power Supplies | • 450 W Platinum 100 — 240 VAC, non redundant | |
| • 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant | ||
| Cooling Options | Air cooling | |
| Fans | • Up to six cabled fans | |
| Dimensions | • Height – 42.8 mm (1.68 inches) | |
| • Width – 482.0 mm (18.97 inches) | ||
| • Depth – 461.14 mm (18.15 inches) without bezel | ||
| • Depth – 496.8 mm (19.55 inches) with bezel | ||
| • Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel | ||
| Form Factor | 1U rack server | |
| Embedded Management | • iDRAC9 | |
| • iDRAC Direct | ||
| • iDRAC RESTful API with Redfish | ||
| • iDRAC Service Manual | ||
| Bezel | Security bezel or optional Filter bezel | |
| OpenManage Software | • OpenManage Enterprise | |
| • OpenManage Power Manager plugin | ||
| • OpenManage Service plugin | ||
| • OpenManage Update Manager plugin | ||
| • CloudIQ for PowerEdge plug in | ||
| • OpenManage Enterprise Integration for VMware vCenter | ||
| • OpenManage Integration for Microsoft System Center | ||
| • OpenManage Integration with Windows Admin Center | ||
| Mobility | OpenManage Mobile | |
| OpenManage Integrations | • BMC Truesight | |
| • Microsoft System Center | ||
| • OpenManage Integration with ServiceNow | ||
| • Red Hat Ansible Modules | ||
| • Terraform Providers | ||
| • VMware vCenter and vRealize Operations Manager | ||
| Security | • Cryptographically signed firmware | |
| • Data at Rest Encryption (SEDs with local or external key mgmt) | ||
| • Secure Boot | ||
| • Secured Component Verification (Hardware integrity check) | ||
| • Secure Erase | ||
| • Secured-core server | ||
| • Silicon Root of Trust | ||
| • System Lockdown (requires iDRAC9 Enterprise or Datacenter) | ||
| • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | ||
| Embedded NIC | 2 x 1 GbE LOM | |
| GPU Options | N/A | |
| Ports | Front Ports | Rear Ports |
| • 1 x iDRAC Direct (Micro-AB USB) port | • 1 x Dedicated iDRAC Ethernet port | |
| • 1 x USB 2.0 | • 1 x USB 2.0 | |
| • 1 x USB 3.2 Gen1 | ||
| • 1 x VGA | ||
| • 1 x Serial | ||
| Internal Ports | ||
| • 1 x USB 3.2 Gen1 | ||
| PCIe | Up to two PCIe Gen4 slots on the Gen4 Riser | |
| • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile | ||
| • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile | ||
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS | |
| • Microsoft Windows Server with Hyper-V | ||
| • Red Hat Enterprise Linux | ||
| • SUSE Linux Enterprise Server | ||
| • VMware ESXi | ||
| For specifications and interoperability details, see Dell.com/OSsupport. | ||
